Venturi Aeration Systems


Posted March 31st, 2020

  Simple, Inexpensive Aeration System for Treatment of Iron and Hydrogen Sulfide

Pure Water Products offers state-of-the-art AerMax systems with electric air pumps for treatment of iron, manganese and hydrogen sulfide, and we provide a good variety of parts for these systems on our main website. We also offer “single tank aerators,” which are filter that draw in air to treat contaminants during their regeneration process.  In addition, we have the simple, inexpensive aeration system described below.

These parts fit and interchange with the Nelsen Corporation’s “Terminator” Aeration Systems. Please call for information and pricing on complete Terminator units or for any of the parts shown on this page.

aeration_venturi (3)

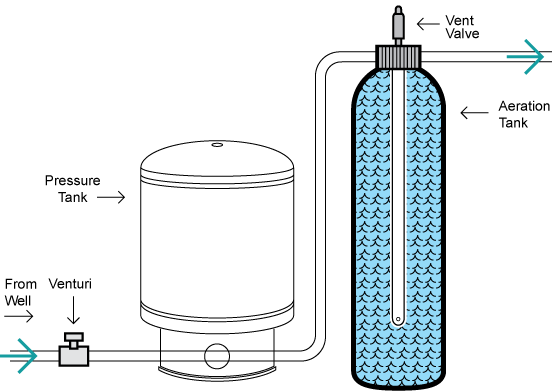

In the passive venturi aeration system pictured above, when the well pump is running, water from the well passes through the venturi valve which draws air into the water line. An aeration tank which follows the well’s regular pressure tank provides contact time and mixing space so that the air can oxidize the iron, manganese, or hydrogen sulfide for removal by a filter. (The filter is not shown and is not included in this product. We provide many excellent filters for this purpose on our main website.) The vent valve on top of the aeration tank vents off excess air.

 venturi (1)

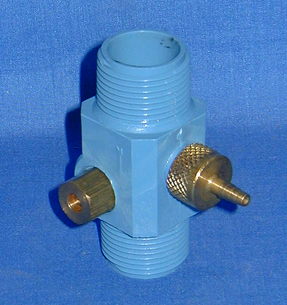

Waterite Venturi Air Injector. Air is drawn into the water stream through the stem on the right. The nut on the left provides an adjustment.

We offer the parts and entire units listed, but information and sales are done by phone or email only.

Pure Water Products

Email: pwp@purewaterproducts.com, or call 940 382 3814 for information or purchase.

Please call for pricing.

Part Number
Description
AM200 Waterite Air Injector, 1″–3/8 to 16 gpm. Installs on 1″ water line.
AM220 Honeywell Air Mix Tank Kit, ¾”
AM221 Honeywell Air Mix Tank Kit, 1″
AM222

Honeywell/Braukmann Air Vent, 1/8″. Passive Air Vent without vent tube.

AM223

Vent Tubing Connector for Honeywell Air Vent. Adapts 1/8″ Vent Nipple to 1/4″ tube

AM230 PWP Budget Air Mix Assembly. Include Honeywell Vent Kit, 1″, Waterite Injector, 1″, and 8 X 44 Mix Tank
AM229 PWP Budget Air Mix Assembly. Includes Honeywell Vent Kit, 3/4″, Waterite Injector, 1″, and 8 X 44 Mix Tank (Identical to AM230 except that the vent head is for 3/4″ pipe.)

This equipment is not available for order by shopping cart, but you can order by calling 940 382 3814.
